| Item No.: | JY069 |
| Min. Order: | 1 Piece |
|---|
The JY069 machine is used for making and packaging of telescopic straw. The machine has a high degree of automation and a high speed of making and packaging capacity. All of the processes including tube inputting, film transmitting, packaging, cutting, and product outputting are finished in just one time.
Features：
1. high automaticity, making and packing speed is adjustable.
2. Have the repair system.
3. Automatic counting Alarm when the pre-set value is reached.
4. control by frequency converter, automatic shutdown when overload.

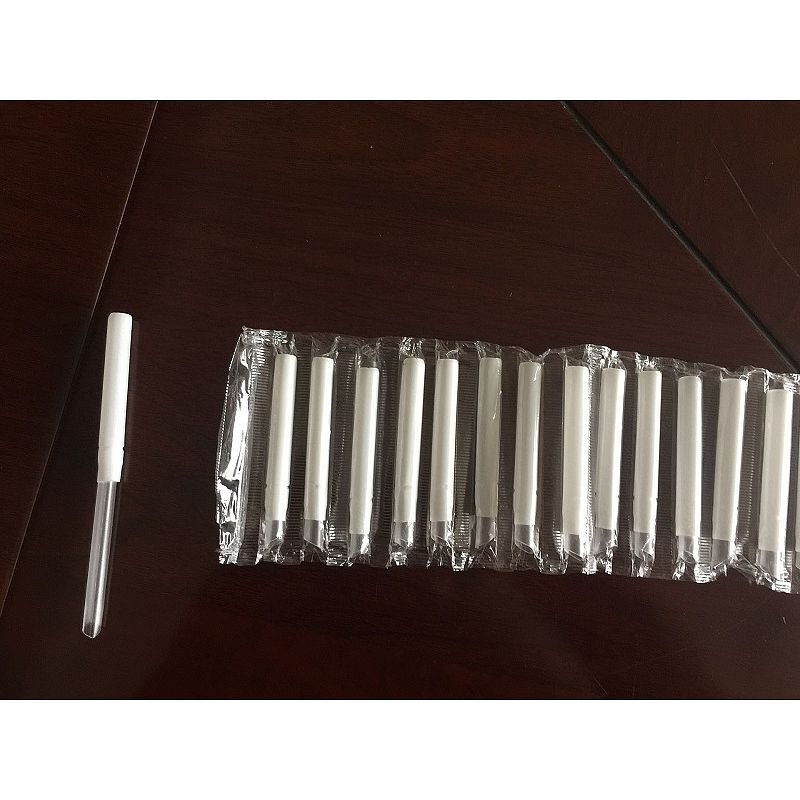

Specification of the straw | Length | Shrinked:74mm | |
Diameter | Inner straw: OD:4.8mm Outer straw: OD:6.0mm | ||
speed | 300pcs/min | ||
Specification of Wrapping material | Wrapping material | BOPP can be hot sealed Such as BOPP | |
Dia. of roll | （maximum）340mm | ||
Width of film | （maximum）190mm | ||
Specification of the final product | Outer shape | I-shape packing | |
Pitch | 15mm ( also can be customizable) | ||
Machine size | L× W×H | 5000mm×1600mm×1500mm | |
Power capacity | Main motor | 2．2Kw | |
Feeding Motor | 90W | ||
Heating power | 15Kw | ||
Weight | 3（Ton） | ||
