| Item No.: | JY033 |
| Min. Order: | 1 Piece |
|---|

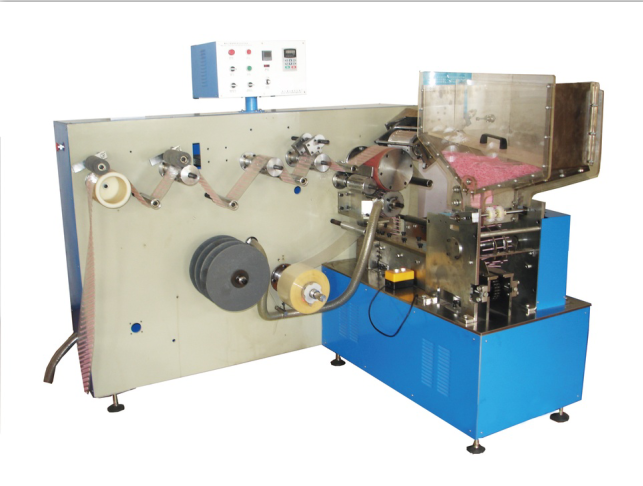

JY033 U-shape paper straw packing machine

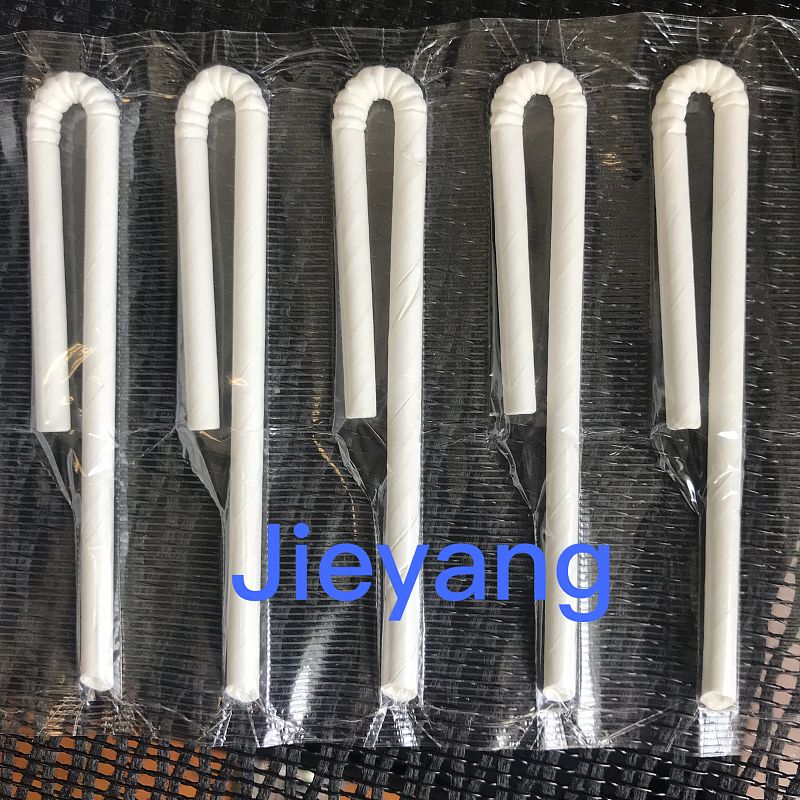

JY033 series U-shape Tetra-pak flexible drinking straw packing machine is for bending flexible paper straws to be U-shaped straws and automatically packing. U-shaped straws are used for aseptic-packing beverage, such as Tetra-pak.
1.Easy to operate. Packing speed is variable. Automatic stop when fault.
2.Perform sharp end cutting on the straws, ensuring all sharp ends are packed in the same direction, with automatic absorbing waste device.
3.Automatic counting. Alarm when the preset value is reached.
4.Packing speed is adjustable.
| Driving Motor | 1.5kw control by frequency converter | |
| Capacity | 300 pcs/min | |
| Packing method | four sides sealing | |
| Specifications of the packing material | Material | BOPP can be hot sealed |
| Roller diamter | Max :280mm | |
| Internal diameter of paper tubes | 76mm | |
| Thickness of BOPP film | 15μ-20μ | |
| Packing shape | 22mm(p）×100~140m(w） | |
| Straws specifications | inner diameter | Ø 3.5mm Ø 3.8mm |
| Straw thickness | 0.35mm | |
| Size (L×W×H) | 2000 × 1800×1600mm | |
| Weight | 1100kg | |
